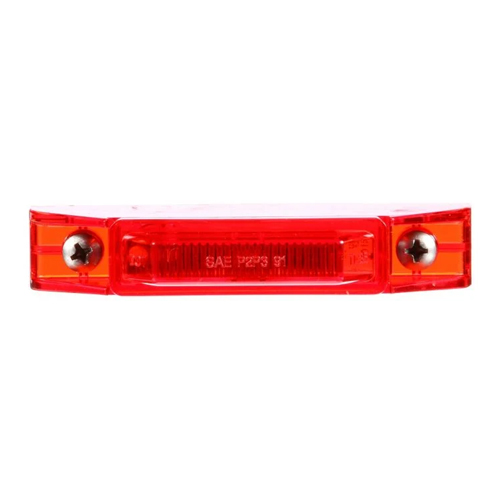

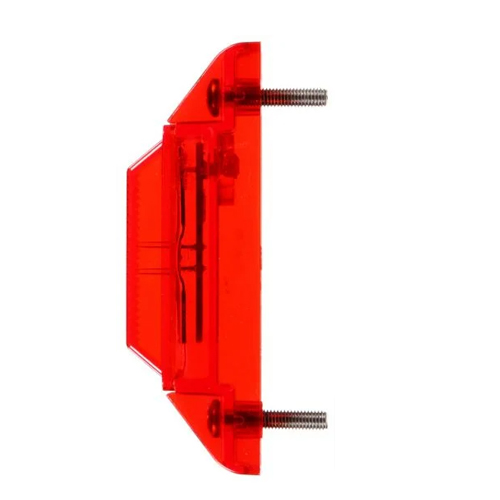

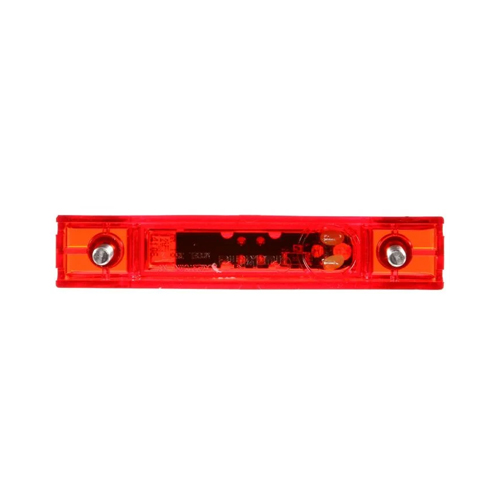

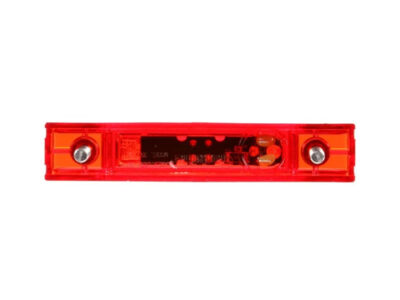

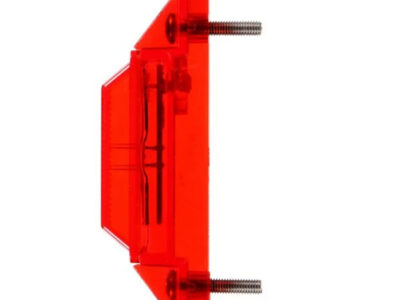

35 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P2, 2 Screw, Fit ‘N Forget M/C, 12V
$100.00
Part Number: 35200R3
Slim 3/4” wide design makes lamp perfect solution for narrow rail designs|Must be mounted horizontally|Optional gasket to improve seal between lamp and body|Not suitable for PC requirements
- No Plug
- Fit ‘N Forget M/C
- 12 V
Specification
| Product Name | 35 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P2, 2 Screw, Fit ‘N Forget M/C, 12V | |
| Brand | TL | |
| Category | Marker Clearance Light | |
| Series | 35 Series | |
| Warranty | Lifetime | |
| Common Root | 35200R | |
| Country of Origin | ZZ | |
| Diamond Shell (Yes/No) | No | |
| Features & Benefits | Slim 3/4” wide design makes lamp perfect solution for narrow rail designs|Must be mounted horizontally|Optional gasket to improve seal between lamp and body|Not suitable for PC requirements | |
| Feature Highlights | No Plug|Fit ‘N Forget M/C|12 V | |
| Housing Material | Polycarbonate | |
| Itm Id | 2114790 | |
| KIT (Yes/No) | No | |
| Lens Shape | Rectangular | |
| Lighting Technology | LED | |
| Lamp Connection | Fit ‘N Forget M/C | |
| Lens Color | Red | |
| Lens Height_INH | .75 | |
| Lens Material | Polycarbonate | |
| Lens Width_INH | 4 | |
| Mount/Trim Color | Red | |
| Mount Type | 2 Screw | |
| NAPA Part Number | 35200R | |
| Number of Diodes/Bulbs | 1 | |
| Packaging Type | Standard | |
| Part Number | 35200R4 | |
| Plug Side One | No Plug | |
| Plug Side Two | No Plug | |
| Reflectorized (Yes/No) | No | |
| Sealed/Bulb Replaceable | Sealed | |
| Standards Met | P2|PC | |
| Std Carton Qty | 1 | |
| Taxonomy | Lights.Marker & Clearance Lights | |

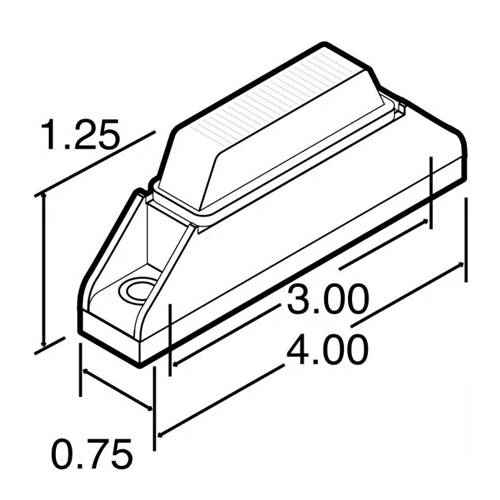

| Total Depth_MMT | 31.75 | |
| Total Depth | 1.25 | |
| Temp. Description | LED Mdl 35 Omni Volt Lamp | |
| Total Height_MMT | 19.05 | |
| Total Height | .75 | |
| Total Length | .05 | |
| Total Width_MMT | 101.6 | |
| Total Width | 4 | |
| UNSPSC/Tariff | 25172900 | |
| UPC | 0735111040897 | |
| VMRS | 034-004-253 | |
| Voltage (VLT) | 12 | |
| Weight | .13 |
