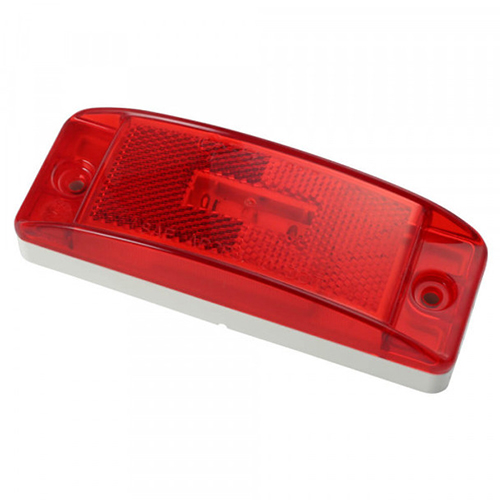

47072, Grote LED Turtleback II Marker/Clearance Light (Red)

• 47072
• Super-Nova Sealed Turtle-back II LED Red Marker/Clearance Light
• All lamps have hermetic lens-to-housing sealing to protect against corrosion
• All lamps are designed to operate solely in horizontal position
• Not designed for vertical mount
• All LEDs are encapsulated in potting to provide total circuit board protection
• Reflex versions meet PC function when mounted at a 45° angle – when mounted on the side or back of a bus
• Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
• Male pin connector versions have tin plated; solid brass terminals sealed to the housing
• Material: Acrylic
• FMVSS: A, P2, PC
• Finish: Red
• Voltage Amp: 12V / .06A
• Material: Acrylic Lens, Polycarbonate Housing
• Color: Red
• Lens Color: Red
• Housing Color: White
• Amperage: .06A
• Mounting Type: Bracket
• Connection Type: Male Pin
• Regulations: FMVSS 108 / OPTIC – P2, PC; REFLEX – A, P2
• Functions: P2, PC, A
• Made in the USA
• 1 per pack
• 1 Year Limited Warranty

VMRS: 034-004-253

Cross#’s: 47072: GRE, 47072-3, 01-ZCG-47072, GRT-47072, 220125B, B000NDD970

The Turtleback® lamp gets its name from the convex design of the lens which deflects limbs and other impacts. Now available in both incandescent and LED options, there is a TBII version for almost any trailer use, including dual-function auxiliary high-mount stop lights.
