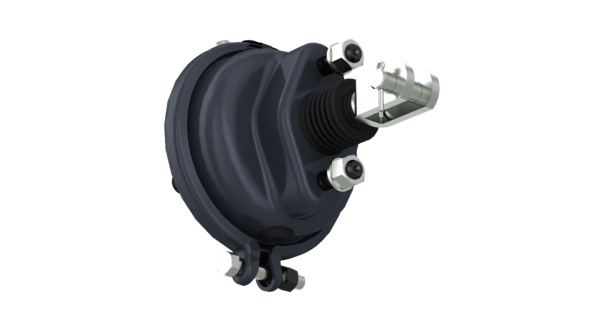

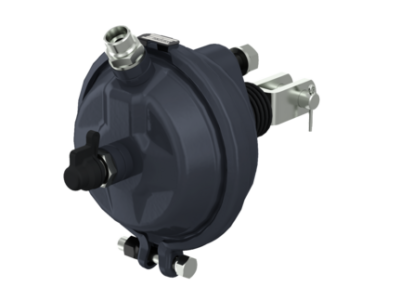

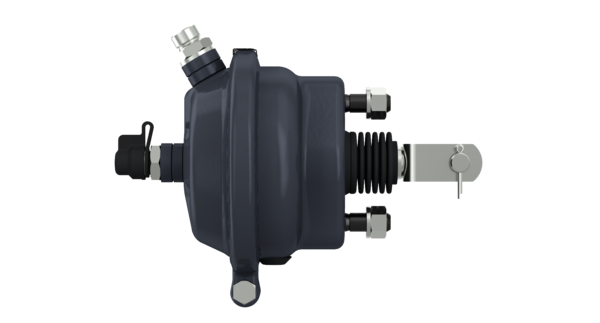

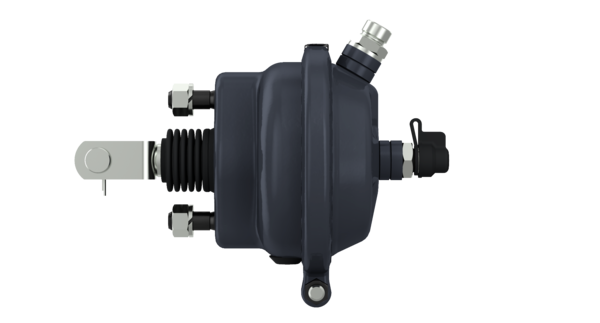

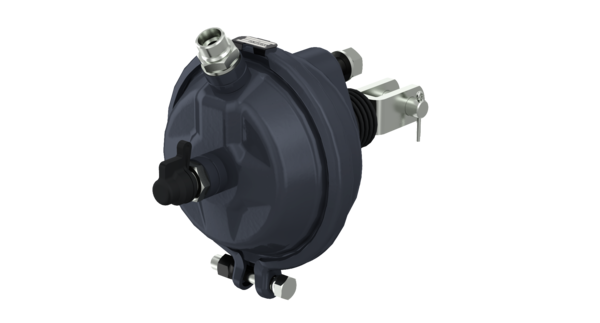

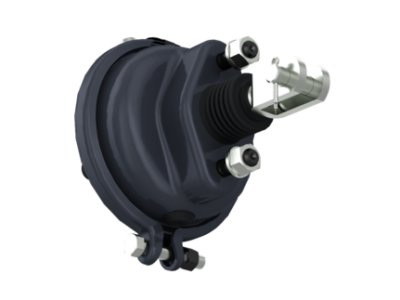

Brake Chamber
$100.00
| Brand | WABCO Original |
|---|---|
| Part type | Premium original quality |
| Bolt lengths | 29.0 mm |
| Bolt threads | M12 x 1.5 |
| Clevis pins | 12.5 mm |
| Distance between bolts | 76.2 mm |
| Max. operating pressure | 10.0 bar |
| Port threads | M18 x 1.5 |
| Product category | Device |
| Push-rod length | 72.0 mm |
| Push-rod thread | M14 x 1.5 |
| Stroke | 53.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 103.5 mm |
| Type | 12 |
| Type of operation | Cam |
| Version | With Boot |
| Yoke | Screwed |
| UPC | 193133517856 |
