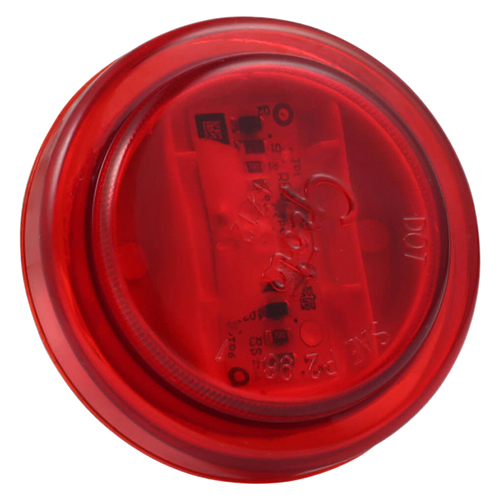

Grote Clearance/marker Lamp, 2.5″ Red, Supernova Led – 47122
$100.00
Product Code: GRT-47122
Manufacturer Code: 47122
With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova 2 1/2″ LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick Plug-and-Go Retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Features
- Hermetic lens-to-housing seal
- Encapsulant potting for total circuit-board protection
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go retrofit
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
Specification
| Material | Polycarbonate Housing, Polycarbonate Lens |
|---|---|
| Color | Red |
| Lens Color | Red |
| Amperage | 06A |
| Mounting Type | Grommet, Bracket |
| Connection Type | PL-10 |

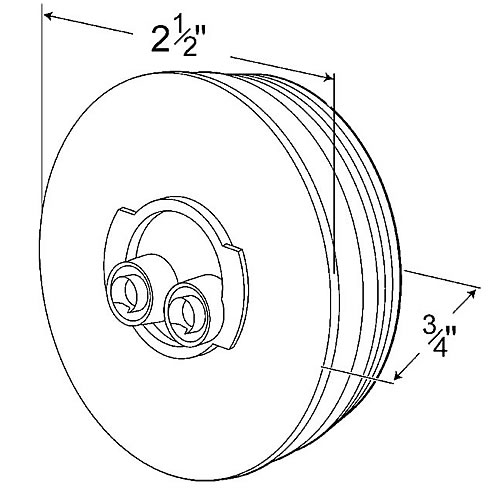

| Size | 2 1/2″ |
| Height | .75″ |
| Regulations | FMVSS 108 |
| Functions | P2 |
| VMRS | 034-004-253 |
| Diameter | 2.5″ |
| Case UPC | 89373451541 |
| Fixture Type | Clearance/Marker Lamp |
| Light Style | Grote |
