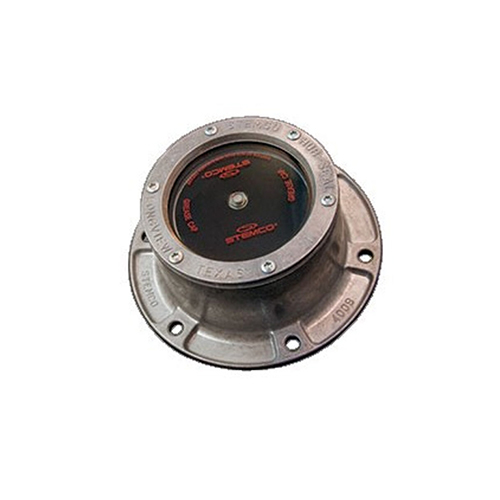

Stemco 342-4195 Dirt Exclusion Grease Hub Cap

Dirt Exclusion Hub Caps.

For grease applications, the 342 series Dirt Exclusion hub caps provide the same 340 casting without a side fill plug, plus a solid window with a sintered metal vent for venting purposes.

Hub Caps For Any Fleet.

STEMCO has provided the trucking industry with reliable hub caps for more than 60 years. Throughout our history, we have recognized the need for tougher, long lasting hub caps that meet the performance, design and price requirements related to selecting the right hub cap for any fleet. To meet that need, STEMCO has engineered a menu of hub cap options designed to meet the varying performance expectations of each fleet, all in an effort to maximize performance and value.

342-4195

Hub Cap

Details

• Bolt Circle 6.75
• Bolt Size 5/16
• Number of Bolts 6
• Overall Depth 3-11/16
• Inside Depth 2-15/16
• Flange Inner Diameter 5-7/16
• Flange Outer Diameter 7-1/2
• Gasket Part Number 330-3118
• Replacement Window Kit 359-6095

Application Notes

Dirt Exclusion Grease Hub Cap

Manufacturer Name Part Number Application Notes

• Dual Dynamics 255-G
