PARTS CATALOG

HK0003474

TRA-1146

SUSPENSION - LEAF SPRING, TRAILER LEAF SPRING

HK0002417

454-7443

AIR BAG-AIR SPRING DOUBLE CONVULATED

HK0002523

HOSHT-9553

AIR TANK, 1425 CUBIC IN VOL 9.500IN DIA

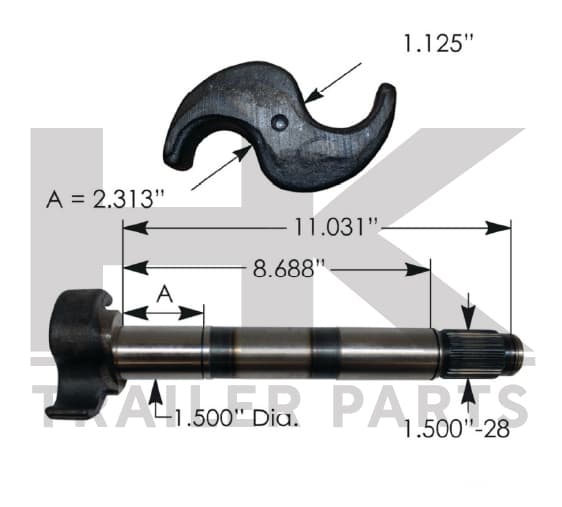

HK0004583

04-871121

S-CAM/CAMSHAFTS, HENDRICKSON INTRAAX WITH 16-1/2IN HXS, 1.125IN HEAD, 1.5IN-28 SPLINES, (MOST COMMON)

HK0002522

S-26000

BUSHING KIT, TRAILER, PVT, HENDICKSON, Y-BEAM BUSHING KIT .QUICK-ALIGN TYPE

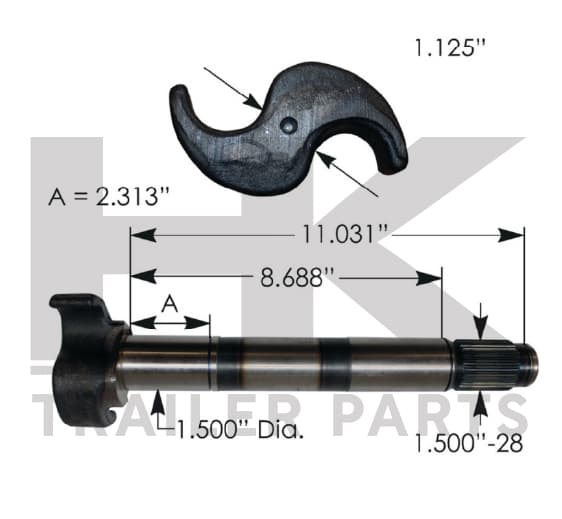

HK0004582

04-871122

S-CAM/CAMSHAFTS, CAMSHAFT LH, INTRAAX WITH 16-1/2IN HXS, 1.125IN HEAD, 1.5IN-28 SPLINES MOST COMMON

HK0004214

08-132806

CAMSHAFT REPAIR KIT, CAMSHAFT REPAIR KIT FOR SPICER TRAILER AXLES – COMPATIBLE WITH 12-1/4" AND 16-1/2" DIAMETER BRAKES, SUITABLE FOR STANDARD AND XL BRAKE SYSTEMS

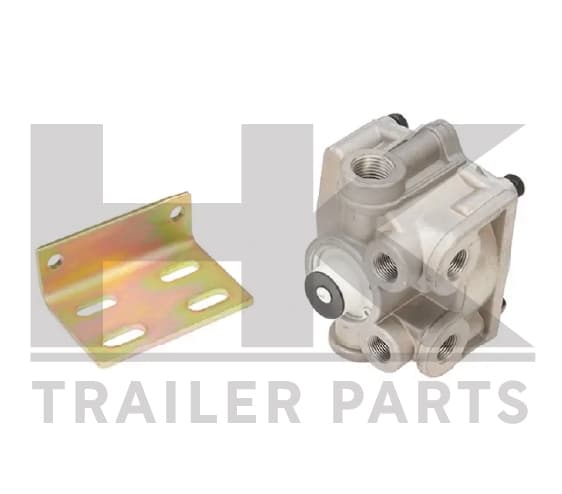

HK0004406

AV065476

PILOT RELAY VALVE, R12P

HK0003088

S-22889-7

ABS SENSOR, 90 DEGREE ANGLE, 14.84" IN , HALDEX TYPE

HK0004397

924-5831

AIR TANK PETERBILT, OD 9.625", LENGTH 24.0"

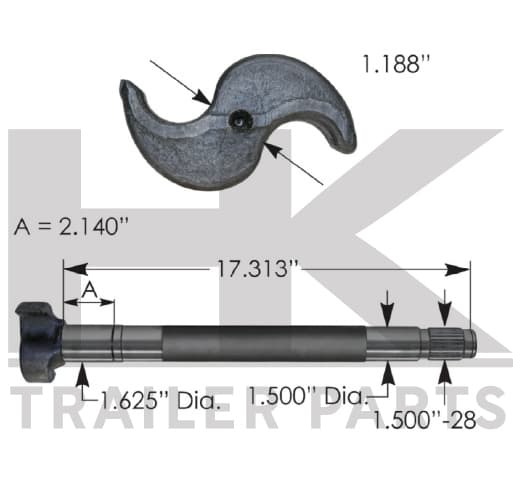

HK0004213

04-801732

S-CAM, CAMSHAFT LH, 16.5 SAF/HOLLAND X CAM

HK0003594

441-850005416

SHOCK ABSORBER, COLLAPSED LENGTH :-11.5, LENGTHS STROKE :-5.78, EXTENDED LENGTH:- 17.28,

HK0003089

S-22889-6

ABS SENSOR, 90 DEGREE,14IN

HK0003427

HOSHT-12191

AIR TANK, TRAILER, DIAMETER-12"

HK0003280

10083516

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, PARALLEL SPINDLE, 10 STUD X 11.25" BRAKE TYPE :- BENDIX ADB22X-LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS Drum/rotor pilot 8.66 in Hubcap Holes 5/16-18 in Hubcap Mount (6) on 6.75 in Inner Breaing HM518445 Inner Race HM518410 Inner Set SET415 OE Ref Number S-28534-1 Outer Bearing HM518445 Outer Race HM518410 Outer Set SET415 Overall Height 8.89 in Wheel Mount (10) on 11.25 in Wheel Offset 1.79 in Wheel Seal WS880065 Wheel Stud 13-1572

HK0003273

S-33386-6

HUBS, WHEEL HUB, TRAILER AIR DISC BRAKE, TAPPER SPINDLE TYPE,10 STUD X 11.25" , APPLICATION TYPE:- BOTH STEEL AND ALUMINUM WHEELS HENDRICKSON MAXX22T, WABCO PAN19, PAN22, HALDEX DB22LT HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER S-33386-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WEIGHT 56.900000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET .79 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0003266

S-36700-2

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN22, APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON, DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN OUTER AND INNER BEARING HM518445 OUTER AND INNER RACE HM518410 OUTER AND INNER SET SET415 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003999

HOSHT-8030

AIR TANK RESERVOIR

HK0003414

D-25430-2

BOGGIE PIN RELEASE ASSEMBLY, 42.0IN BOX SLIDER; CAST IRON TYPE; BUILT BEFORE 02-2015

HK0003259

D-28596-32

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, 10 STUD X 11.25" BC, TAPPER SPINDLE BENDIX ADB22X-LT AIR DISC BRAKE APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS MATERIAL :- DUCTILE IRON CAN BE USED AS A SUBSTITUTE OF D-28596-31 ABS YES ABS TEETH 100 BETWEEN THE RACES 3.34 IN DRUM/ROTOR BOLT CIRCLE (10) ON 9.82 IN DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER C-34582-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.82 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0004396

924-5800

AIR TANK, OD 11.125", INTERNATIONAL, LENGTH 35", PROSTAR, 4300, 5900I, 73-7600, 85/8600 TRANSTAR 2010-15, TANK PORTS:- (5) M22X1.5, (1) 1/4" NPT

HK0002796

VS-14179

AIR VALVE, 4-WAY PUSH PULL VALVE, 4 WAY FLIPPER VALVE PUSH-PULL AIR VALVE, 2 POSITION 4 WAY, 5 PORT AT 1/8IN NPT FOR USE WITH SURELOK SYSTEM"

HK0003258

S-36701-2

HUBS, WHEEL HUB, TRAILER ,AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN19 AIR DISC BRAKE TYPE APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS MATERIAL:- DUCTILE IRON IT CAN USE AS SUBSTIUTE OF S-36701-1 DRUM/ROTOR BOLT CIRCLE (10) ON 9.82 IN DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER S-33386-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET .79 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0003061

S-33649-1

CALIPER & THEIR REPAIR KITS DISC BRAKE CALIPER HARDWARE KIT AIR DISC - AXIAL MOUNT BOLT KIT ADB22X
