PARTS CATALOG

HK0003339

HM212011

BEARING, WHEEL BEARING CUP

HK0003166

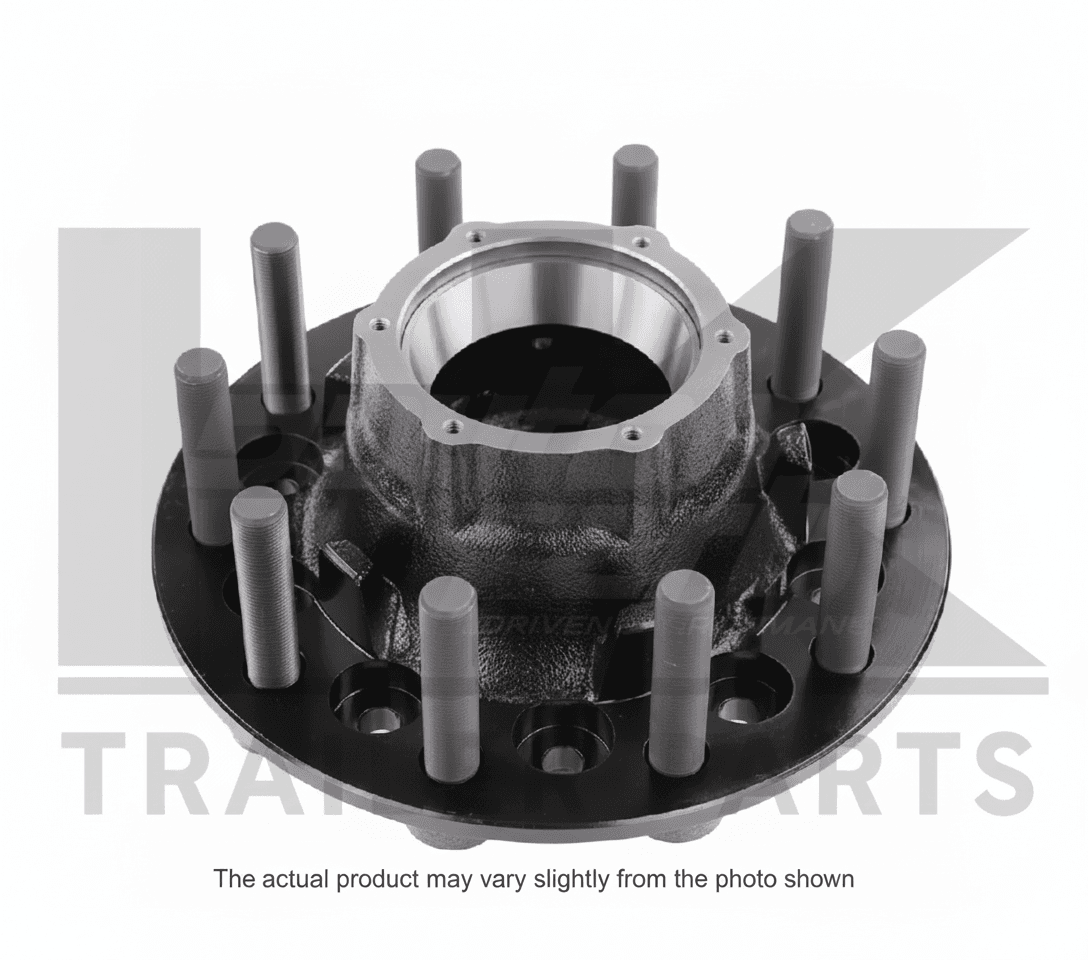

20231-3T

HUBS, WHEEL HUB, TRAILER HUB, OUTBOARD MOUNT, HM212049 & HM218248 BEARINGS, FOR STEEL WHEELS TAPPER SPINDLE APPLICATION:- HLS, HVS, HXL7 OUTER BEARING CUP: HM212011 OUTER BEARING CONE: HM212049 INNER BEARING CUP: HM218210 INNER BEARING CONE: HM218248 NO. OF WHEEL STUDS: 10 WHEEL STUD: M3668 WHEEL STUD STANDOUT: 3-1/2" (FROM HUB FACE TO END OF STUD THREAD) WHEEL STUD BOLT CIRCLE: 11.25" DRUM PILOT DIAMETER: 8.78" SEAL BORE DIAMETER: 6.00" ABS READY: YES WHAT'S INCLUDED: HUB, STUDS, BEARING CUPS

HK0003167

20231-5T

HUBS, WHEEL HUB,TRAILER HUB, OUTBOARD MOUNT, HM212049 & HM218248 BEARINGS, FOR ALUMINUM WHEELS AND STEEL WHEELS TAPPER SPINDLE W/ ABS RING LONG STUDS WHEEL STUD 101160 STUD STAND OUT 3.94 DRUM OPTIONS 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B NUMBER OF STUDS 10 BOLT CIRCLE 11.25 STUD DESCRIPTION M22 X 1.5MM SERRATED STUD OUTER BEARING CUP HM212011 OUTER BEARING CONE HM212049 INNER BEARING CUP HM218210 INNER BEARING CONE HM218248 CAN USE AS ALTERNATIVE FOR 20231-3T OR 202313T

HK0000948

182.413

WHEEL BEARING KIT HM212011 / HM212049

HK0003171

01025LT

HUBS, WHEEL HUB, TRAILER, HUB TN (TAPPER SPINDLE) 10 HOLE UNIMOUNT, RACES, LONG STUDS, TONE RING 16.5X7/202315T CAN USE S-35216-4 AND 20231--5T AS ALTERNATIVE 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER 20231-5T OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN

HK0003273

S-33386-6

HUBS, WHEEL HUB, TRAILER AIR DISC BRAKE, TAPPER SPINDLE TYPE,10 STUD X 11.25" , APPLICATION TYPE:- BOTH STEEL AND ALUMINUM WHEELS HENDRICKSON MAXX22T, WABCO PAN19, PAN22, HALDEX DB22LT HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER S-33386-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WEIGHT 56.900000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET .79 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0003253

S-34576-3

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE , 10 STUD, WABCO PAN22 HALDEX DB22LT APPLICATION TYPE :- STEEL WHEELS DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER S-33386-1 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WHEEL MOUNT (10) ON 11.25 IN

HK0003260

S-35025-2

HUBS, WHEEL HUB, TRAILER ,AIR DISC BRAKE , 10 STUD X 11.25" BC, TAPPER SPINDLE, SUBSTITUTE FOR S-35025-1, S-35025-3, S-35025-4 HENDRICKSON MAXX22T AIR DISC BRAKE APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS ( LONG STUD) MATERIAL :_ DUCTILE IRON ABS NO BETWEEN THE RACES 3.34 IN DRUM/ROTOR BOLT CIRCLE (10) ON 9.82 IN DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET .79 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0003251

S-34576-1

HUBS, DrWHEEL HUB, TRAILER, TAPPER SPINDLE, AIR DISC BRAKE , 10 STUD, WABCO PAN22, HALDEX DB22LT APPLICATION TYPE :-STEEL WHEELS ( SHORT STUD) ABS NO BETWEEN THE RACES 3.34 IN DRUM/ROTOR BOLT CIRCLE (10) ON 9.82 IN UM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WHEEL SEAL WS880025 WHEEL STUD 13-1571

HK0003183

106302

HUBS, WHEEL HUB, TRAILER, STRAIGHT SPINDLE, FOR STEEL WHEELS OUTBOARD MOUNT, HM212049 & HM218248 BEARINGS, FOR STEEL WHEELS WHEEL STUD: M3668 HUB CAP BOLT CIRCLE: 5.50" (6-HOLE) NO. OF WHEEL STUDS: 10 WHEEL STUD STANDOUT: 3-1/2" (FROM HUB FACE TO END OF STUD THREAD) WHEEL STUD BOLT CIRCLE: 11.25" DRUM PILOT DIAMETER: 8.78" SEAL BORE DIAMETER: 6.00" ABS READY: YES COMMON WITH 3600 BRAKE DRUM

HK0003174

001-00133LT

HUBS, WHEEL HUB, KIT, TRAILER, TAPPER SPINDLE, ASSY N 8-STD UNI M22 X 4.79 12.25 X 7.5 ABS NUTS ABS SENSOR RING INCLUDED:-YES OUTER BEARING CONE NUMBER:- HM212049 INNER BEARING CONE NUMBER:- HM518445

HK0003252

S-34576-2

HUBS, WHEEL HUB, TRAILER , TAPPER SPINDLE, AIR DISC BRAKE , 10 STUD WABCO PAN22, HALSEX DB22LT APPLICATION TYPE :- BOTH ALUMINUM AND STEEL WHEELS DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER S-33386-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WEIGHT 56.900000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET .79 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0003258

S-36701-2

HUBS, WHEEL HUB, TRAILER ,AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN19 AIR DISC BRAKE TYPE APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS MATERIAL:- DUCTILE IRON IT CAN USE AS SUBSTIUTE OF S-36701-1 DRUM/ROTOR BOLT CIRCLE (10) ON 9.82 IN DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER S-33386-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.22 IN WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET .79 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572

HK0003259

D-28596-32

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, 10 STUD X 11.25" BC, TAPPER SPINDLE BENDIX ADB22X-LT AIR DISC BRAKE APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS MATERIAL :- DUCTILE IRON CAN BE USED AS A SUBSTITUTE OF D-28596-31 ABS YES ABS TEETH 100 BETWEEN THE RACES 3.34 IN DRUM/ROTOR BOLT CIRCLE (10) ON 9.82 IN DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 5.50 IN INNER BREAING HM218248 INNER RACE HM218210 INNER SET SET414 OE REF NUMBER C-34582-2 OUTER BEARING HM212049 OUTER RACE HM212011 OUTER SET SET413 OVERALL HEIGHT 7.82 IN WHEEL SEAL WS880025 WHEEL STUD 13-1572
