PARTS CATALOG

HK0003608

182.HM518445

WHEEL BEARING CONE, WIDTH= 1.563'', BORE DIAMETER= 3.500''

HK0000810

307-0723

WHEEL SEAL, WHEEL SEAL/ HUB SEAL - HP DESIGN, FITS PRO-PAR TRAILER AXLE, FRUEHAUF, EATON P-22, MERITOR TP, DANA BORE DIAMETER 6 .008 IN SHOULDER OUTER DIAMETER 4 .250 IN WIDTH 0.5629 IN HUB CAP WITH GASKET 340-4075 INNER BEARING CONE HM518445 INNER BEARING CUP HM518410 INSTALL HANDLE/BODY 555-0001 NOTES ALSO EATON P-22 AND MERITOR TPHUB CAP TOOL #570-7008. OUTER BEARING CONE HM518445 OUTER BEARING CUP HM518410 SEAL TYPE

HK0003274

S-33387-8

HUBS, WHEEL HUB, TRAILER , PARALLEL SPINDLE, 10 STUD X 11.25", MATERIAL :- IRON, APPLICATION:- BOTH STEEL AND ALUMINUM WHEELS HENDRICKSON MAXX 22T, WABCO PAN19, PAN22, HALDEX DB22LT DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN INNER BREAING HM518445 INNER RACE HM518410 INNER SET SET415 OE REF NUMBER S-33387-2 OUTER BEARING HM518445 OUTER RACE HM518410 OUTER SET SET415 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003264

D-28596-11

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, PARALLEL SPINDLE, 10 STUD X 11.25" BC, CAN SUBSTITUTE FOR D-31180-1. D-28596-12,10082449, 10082500 BENDIX ADB22X-LT APPLICATION TYPE:- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN INNER BREAING HM518445 INNER RACE HM518410 INNER SET SET415 OE REF NUMBER S-28534-1 OUTER BEARING HM518445 OUTER RACE HM518410 OUTER SET SET415 OVERALL HEIGHT 8.89 IN WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003135

373-0223

WHEEL SEAL, DRIVE SEAL/ HUB SEAL AXLE WHEEL OIL SEAL WIDTH 0.995 IN BORE DIAMETER 6.008 IN HUB CAP WITH GASKET 340-4075 INNER BEARING CONE HM518445 INNER BEARING CUP HM518410 OUTER BEARING CONE HM518445 OUTER BEARING CUP HM518410 OUTER DIAMETER 4 .250 IN

HK0003265

S-34577-2

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN22, HALDIX MODULT DBT22LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN INNER BREAING HM518445 INNER AND OUTER RACE HM518410 INNERAND OUTER SET SET415 OUTER BEARING HM518445 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003280

10083516

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, PARALLEL SPINDLE, 10 STUD X 11.25" BRAKE TYPE :- BENDIX ADB22X-LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS Drum/rotor pilot 8.66 in Hubcap Holes 5/16-18 in Hubcap Mount (6) on 6.75 in Inner Breaing HM518445 Inner Race HM518410 Inner Set SET415 OE Ref Number S-28534-1 Outer Bearing HM518445 Outer Race HM518410 Outer Set SET415 Overall Height 8.89 in Wheel Mount (10) on 11.25 in Wheel Offset 1.79 in Wheel Seal WS880065 Wheel Stud 13-1572

HK0003197

10-00112M-102

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, DRUM BRAKES, WALTHER EMC STYLE APPLICATION TYPE :- STEEL WHEELS, HP 10X11.25 ADI INBOARD/OUTBOARD OUTBOARD CONE HM518445 CUP HM518410 WHEEL STUD THREAD M22 BOLT CIRCLE DIAMETER 11.25 BOLT HOLE QUANTITY 10 CAN USED AS SUBSTITUTE FOR 23431--3T-73 AND C-23593-19

HK0003267

D-28596-29

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC BENDIX ADB22X-LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON, HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN OUTERAND INNER BEARING:- HM518445 OUTER AND INNER RACE:- HM518410 OUTER AND INNER SET :-SET415, OVERALL HEIGHT 8.89 IN WEIGHT 60.000000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003174

001-00133LT

HUBS, WHEEL HUB, KIT, TRAILER, TAPPER SPINDLE, ASSY N 8-STD UNI M22 X 4.79 12.25 X 7.5 ABS NUTS ABS SENSOR RING INCLUDED:-YES OUTER BEARING CONE NUMBER:- HM212049 INNER BEARING CONE NUMBER:- HM518445

HK0000445

SET415

BEARING SET, HM518445 / HM518410

HK0003216

HUB-01043LT

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, DRUM BRAKES,10 STUD X 11.25"BC APPLICATION:- ALUMINUM AND STEEL WHEELS MORE INFORMATION MORE INFORMATION WEIGHT 50.130000 HEIGHT 10.08" OVERALL DEPTH 8.15 ABS YES OUTBOARD CONE HM518445 CUP HM518410 WHEEL STUD THREAD M22 BOLT CIRCLE DIAMETER 11.25 BOLT HOLE QUANTITY 10

HK0003218

S-36163-2

HUBS, WHEEL HUB, TRAILER, DRUM BRAKES, PARALLEL SPINDLE, 8 STUD X 275CM BC TRAILER HUB, 12.25" BRAKE, CAST IRON, OUTBOARD, HM518410 INNER CUP, HM518410 OUTER CUP APPLICATION :- BOTH STEEL AND ALUMINUM WHEELS LOWBOY TRAILER AXLE HUB CUP: HM518410 CONE: HM518445 WHEEL STUD BOLT CIRCLE: 275MM (10.827") DRUM MOUNT: OUTBOARD BRAKE DIAMETER: 12.25" ABS READY: YES

HK0003266

S-36700-2

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN22, APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON, DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN OUTER AND INNER BEARING HM518445 OUTER AND INNER RACE HM518410 OUTER AND INNER SET SET415 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

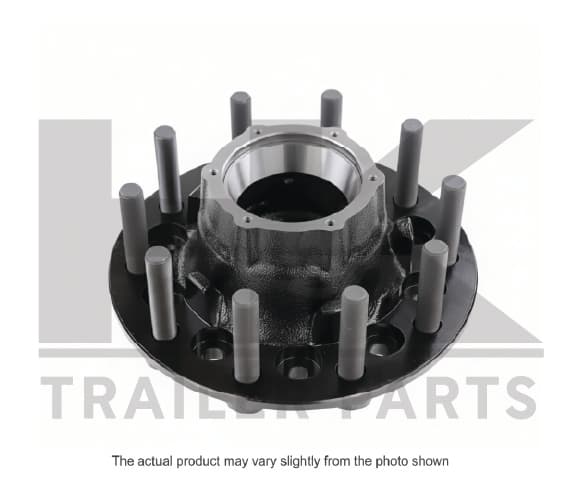

HK0003208

23475--5T80-71

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, DRUM BRAKES APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS 12.25" BRAKE, CAST IRON, OUTBOARD, HM518410 INNER CUP, HM518410 OUTER CUP LOWBOY TRAILER AXLE HUB INNER BEARING CONE: HM518445 WHEEL STUD BOLT CIRCLE: 275MM (10.827") DRUM MOUNT: OUTBOARD BRAKE DIAMETER: 12.25"

HK0003206

23431--5T-71

HUBS, WHEEL HUB,TRAILER, PARALLEL SPINDLE DRUM BRAKES, TRAILER HUB, OUTBOARD MOUNT, HM518410 BEARINGS, APPLICATION TYPE :- FOR BOTH STEEL AND ALUMINUM WHEELS BEARING CONE: HM518445 BEARING CUP: HM518410 NO. OF WHEEL STUDS: 10 WHEEL STUD: M3668, R006034 WHEEL STUD BOLT CIRCLE: 11.25" DRUM PILOT DIAMETER: 8.78" SEAL BORE DIAMETER: 6.00" ABS READY: YES BRAKE SIZE: 16.5"
