PARTS CATALOG

HK0003264

D-28596-11

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, PARALLEL SPINDLE, 10 STUD X 11.25" BC, CAN SUBSTITUTE FOR D-31180-1. D-28596-12,10082449, 10082500 BENDIX ADB22X-LT APPLICATION TYPE:- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN INNER BREAING HM518445 INNER RACE HM518410 INNER SET SET415 OE REF NUMBER S-28534-1 OUTER BEARING HM518445 OUTER RACE HM518410 OUTER SET SET415 OVERALL HEIGHT 8.89 IN WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003274

S-33387-8

HUBS, WHEEL HUB, TRAILER , PARALLEL SPINDLE, 10 STUD X 11.25", MATERIAL :- IRON, APPLICATION:- BOTH STEEL AND ALUMINUM WHEELS HENDRICKSON MAXX 22T, WABCO PAN19, PAN22, HALDEX DB22LT DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN INNER BREAING HM518445 INNER RACE HM518410 INNER SET SET415 OE REF NUMBER S-33387-2 OUTER BEARING HM518445 OUTER RACE HM518410 OUTER SET SET415 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003267

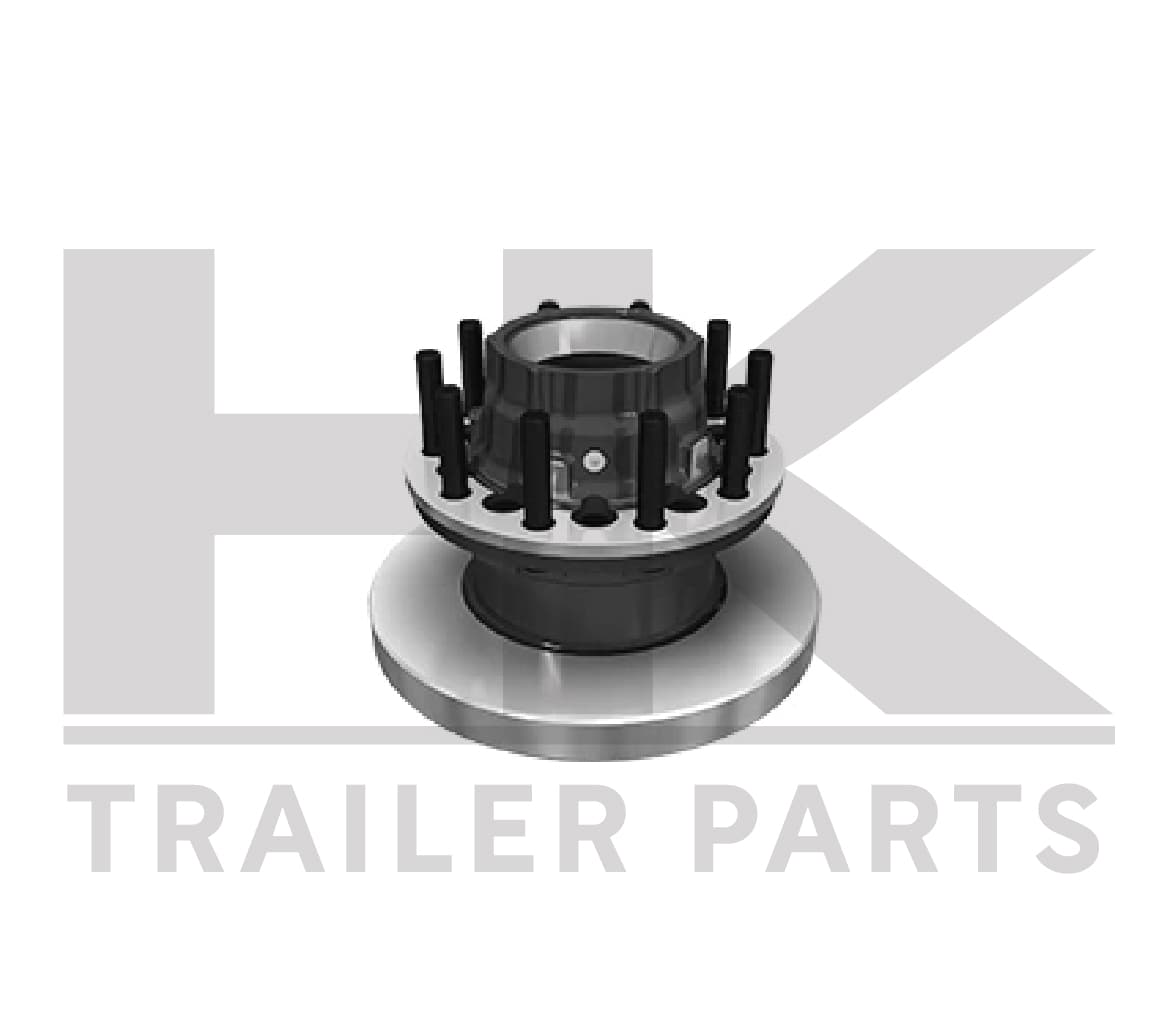

D-28596-29

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC BENDIX ADB22X-LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON, HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN OUTERAND INNER BEARING:- HM518445 OUTER AND INNER RACE:- HM518410 OUTER AND INNER SET :-SET415, OVERALL HEIGHT 8.89 IN WEIGHT 60.000000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003266

S-36700-2

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN22, APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS HUB MATERIAL :- DUCTILE IRON, DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN OUTER AND INNER BEARING HM518445 OUTER AND INNER RACE HM518410 OUTER AND INNER SET SET415 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003265

S-34577-2

HUBS, WHEEL HUB, TRAILER, PARALLEL SPINDLE, AIR DISC BRAKE, 10 STUD X 11.25" BC WABCO PAN22, HALDIX MODULT DBT22LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS DRUM/ROTOR PILOT 8.66 IN HUBCAP HOLES 5/16-18 IN HUBCAP MOUNT (6) ON 6.75 IN INNER BREAING HM518445 INNER AND OUTER RACE HM518410 INNERAND OUTER SET SET415 OUTER BEARING HM518445 OVERALL HEIGHT 8.09 IN WEIGHT 58.200000 WHEEL MOUNT (10) ON 11.25 IN WHEEL OFFSET 1.79 IN WHEEL SEAL WS880065 WHEEL STUD 13-1572

HK0003280

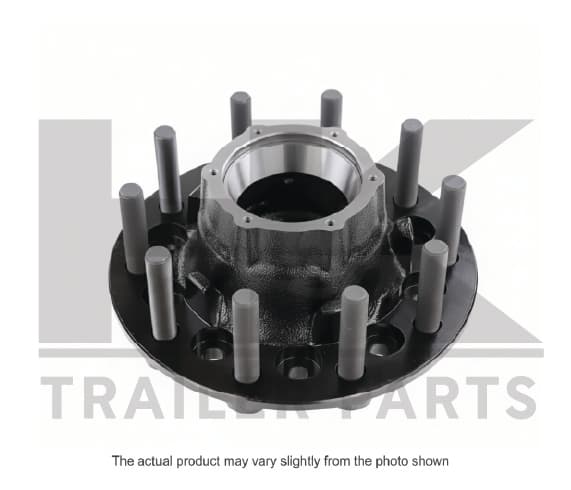

10083516

HUBS, WHEEL HUB, TRAILER, AIR DISC BRAKE, PARALLEL SPINDLE, 10 STUD X 11.25" BRAKE TYPE :- BENDIX ADB22X-LT APPLICATION TYPE :- BOTH STEEL AND ALUMINUM WHEELS Drum/rotor pilot 8.66 in Hubcap Holes 5/16-18 in Hubcap Mount (6) on 6.75 in Inner Breaing HM518445 Inner Race HM518410 Inner Set SET415 OE Ref Number S-28534-1 Outer Bearing HM518445 Outer Race HM518410 Outer Set SET415 Overall Height 8.89 in Wheel Mount (10) on 11.25 in Wheel Offset 1.79 in Wheel Seal WS880065 Wheel Stud 13-1572
