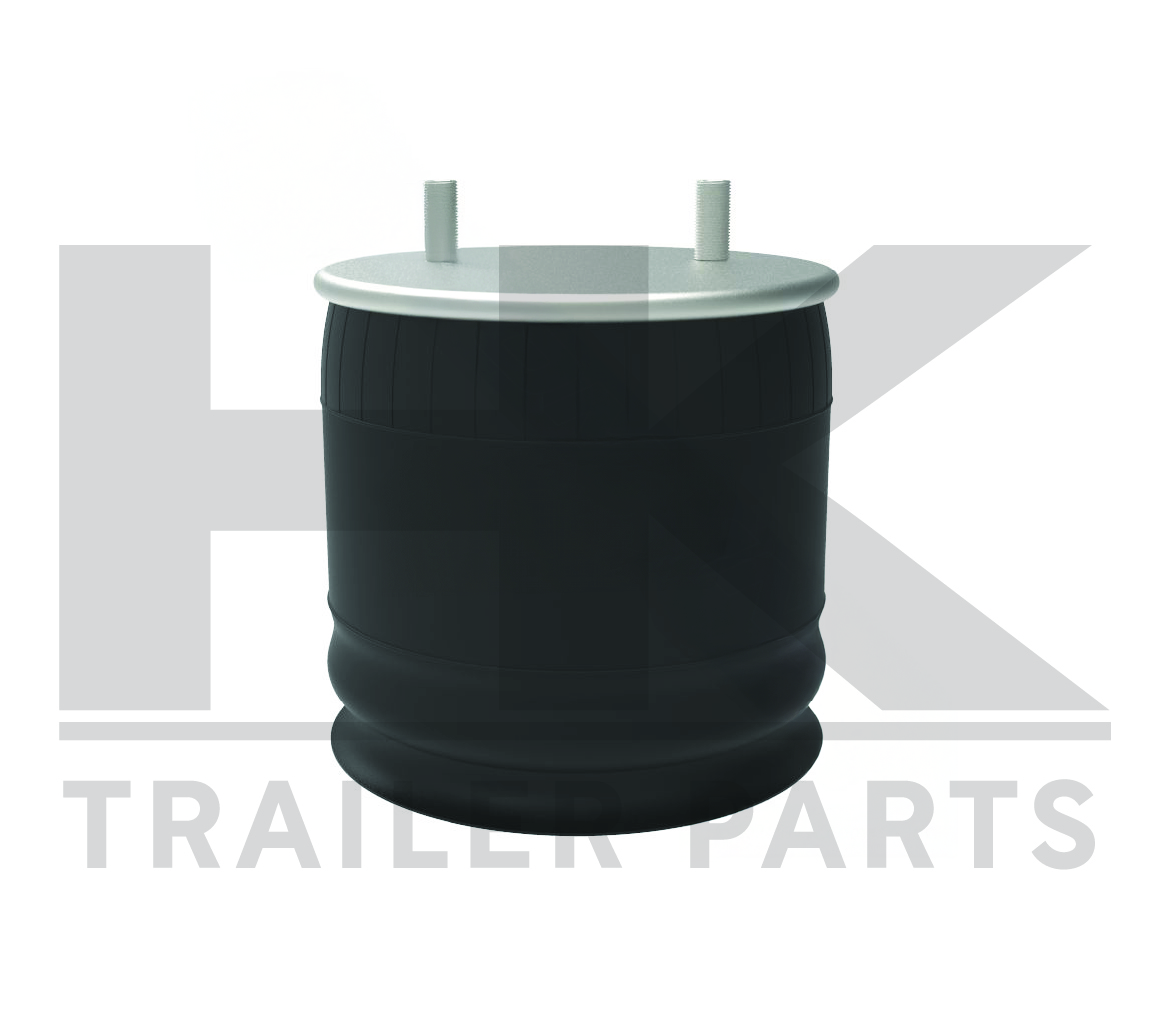

AB1DK25B-8710
AIR BAG ROLLING LOBE
APPLICATIONS HENDRICKSON TRAILER
TYPE ROLLING LOBE
LOAD (LBS) @80 PSI 6760
LOAD (LBS) @100 PSI 8450
NATURAL FREQ. (CPM) 75
DESIGN HEIGHT (IN) 10.50
BOTTOM PLATE TYPE PLASTIC
TOP PLATE HOLE/STUD QTY 2

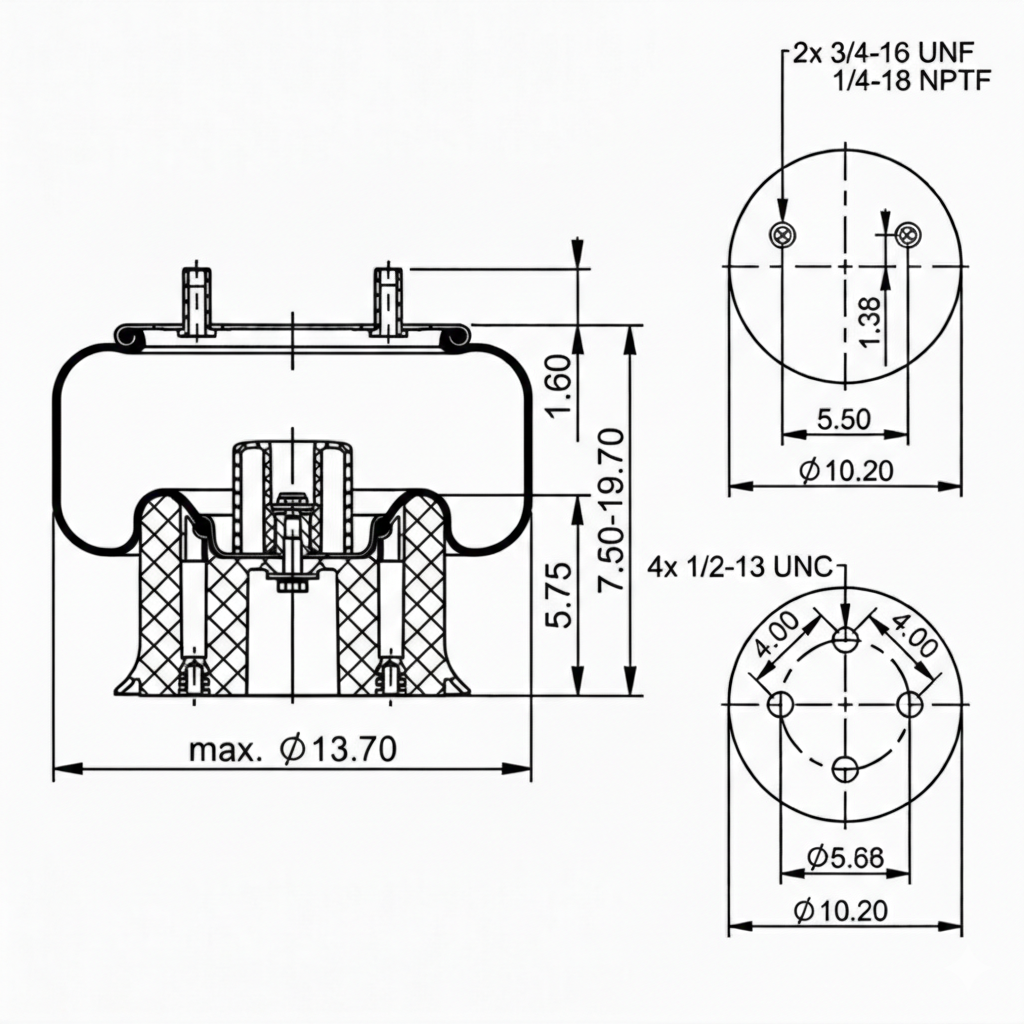

TOP PLATE DIA. (A) 10.20
TOP PLATE C TO C DIA. (B) 5.50
BOTTOM PLATE HOLE/STUD QTY 4
BOTTOM PLATE DIA. (C) 10.20
BOTTOM PLATE C TO C DIA. (D) 5.66"
BOTTOM PART # BS17377
BUMPER YES
BRACKET N/A
MIN. HEIGHT 7.10
MAX. HEIGHT 19.00
MAX. DIA. 13.70
| Sr. No. | Cross Reference |
|---|---|
| 1 | 10 10-15 P 711 |
| 2 | 1010-15S711 |
| 3 | 64635 |
| 4 | 8710 |
| 5 | 8756 |
| 6 | W013588710 |
| 7 | W013588756 |
| 8 | W014558710 |
| 9 | 1R13124 |
| 10 | C21624 |
| 11 | C22046 |
| 12 | S21624 |
| 13 | S22046 |
| 14 | 352-8710 |
| 15 | 87101 |
1 In Stock
